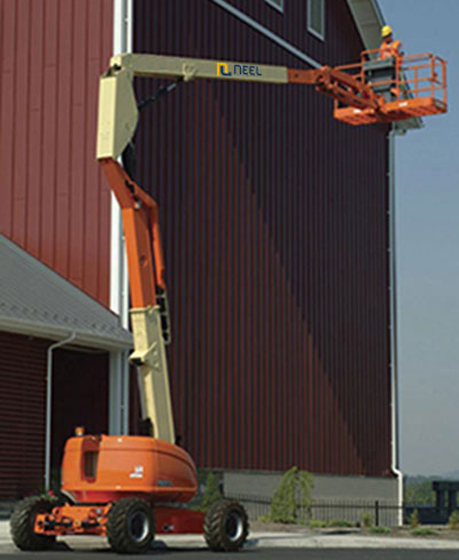

ARTICULATING BOOM LIFTS

The industry's best reach envelope — 26 ft 7 in. (8.1 m) up and over height and up to 39 ft 9 in. (12.12 m) horizontal outreach.
Up to 1,000 lb (454 kg) platform capacity.

7 ft (2.13 m) wide narrow chassis models go where wider competitive machines can't.
Articulating jib models to access hard to reach areas.
Standard oscillating axle and optional 4-wheel drive deliver outstanding drive performance.
Optional 4-wheel steer provides unmatched maneuverability in confined areas.
Exclusive Workstation in the Sky® options and accessories.

Swing-out engine tray allows for faster and easier access for routine maintenance.
Exclusive Advanced Design Electronics (Control ADE®) System provides smoother machine functions, increased fuel efficiency and reduced emissions.

Specifications

Name	Description

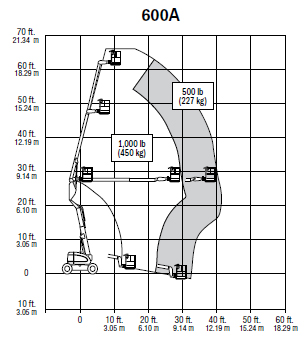

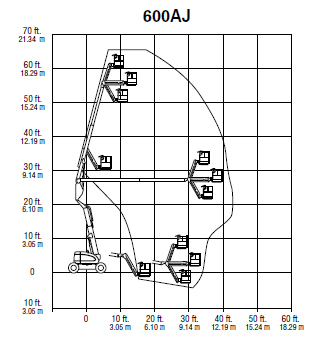

Platform Height
600A	60 ft 5 in. (18.42 m)
600AJ	60 ft 7 in. (18.47 m)
Horizontal Outreach
600A	39 ft 7 in. (12.07 m)
600AJ	39 ft 9 in. (12.10 m)
Up and Over Clearance	26 ft 7 in. (8.1 m)
Swing	360 Degrees Continuous
Platform Capacity — Restricted
600A	1,000 lb (450 kg)
600AJ	500 lb (227 kg)
Platform Capacity — Unrestricted
600A	500 lb (227 kg)
Platform Rotator	180 Degrees Hydraulic
Jib (Range of Articulation)
600AJ	130 Degrees (+70, –60)

Sr. No.	Name	Description
A.	Platform Size	36 x 96 in. (0.91 x 2.44 m)
B.	Overall Width	8 ft. (2.44 m)
	Narrow Models	7 ft (2.13 m)
C.	Tailswing (working condition)	Zero
	Narrow Models	5 in. (13 cm)
D.	Stowed Height	8 ft 4 in. (2.54 m)
E.	Stowed Length
	600A	26 ft 5 in. (8.05 m)
	600AJ	28 ft 11.5 in. (8.83 m)
F.	Wheelbase	8 ft (2.44 m)
G.	Ground Clearance	8 in. (20 cm)
Weight
600A	22,150 lb (10,047 kg)
600A Narrow	24,100 lb (10,931 kg)
600AJ	23,050 lb (10,455 kg)
600AJ Narrow	24,200 lb (10,977 kg)
Max. Ground Bearing Pressure
600A	77 psi (5.5 kg/cm²)
600A Narrow	94 psi (6.6 kg/cm²)
600AJ	75 psi (5.27 kg/cm²)
600AJ Narrow	94 psi (6.6 kg/cm²)

Name	Description
Drive Speed 2WD	4.25 mph (6.8 kph)
Drive Speed 4WD	4.25 mph (6.8 kph)
Gradeability 2WD	30%
Gradeability 4WD	45%
Tires	14 x 17.5 Lug Tread
Narrow Models	14 x 17.5 Air Boss
Axle Oscillation	8 in. (20.4 cm)
Turning Radius (Inside/Outside)
2WS	11 ft. 5 in. (3.48 m)/17 ft. 8 in. (5.38 m)
4WS	5 ft. 6 in. (1.68 m)/11 ft. 8 in. (3.56 m)
Narrow Models
4WS	5 ft. 7 in. (1.7 m)/11 ft. 2 in. (3.4 m)
